N8N Docker Installation: Complete Setup Guide + Production Configuration Examples 2025

N8N is an automation platform that simplifies creating workflows. Deploying it with Docker ensures consistency across environments, minimizing errors caused by mismatched configurations. This guide explains how to set up N8N using Docker, covering everything from basic installations to production-ready deployments.

Running N8N in Docker bundles all dependencies into a container, ensuring a uniform experience across systems. For production, separating services like databases and workflow execution into containers is essential. This approach improves scalability and simplifies maintenance. Tools like Docker Compose make multi-service setups easier to manage, while adding Redis and reverse proxies like Nginx enhances performance and security.

For those who prefer a no-maintenance alternative, platforms like Latenode eliminate the need for manual setup while offering similar automation capabilities. Whether you're self-hosting with Docker or using a managed solution, N8N can transform how you handle repetitive tasks.

Step-by-Step N8N Docker Installation

Verify Docker and Docker Compose Installation

To ensure a smooth setup of N8N, it's important to confirm that Docker and Docker Compose are installed and functioning properly. This step helps avoid potential issues later.

Start by checking the Docker version:

docker --version

The output should indicate Docker Engine version 20.10 or higher. If you encounter an error, Docker might not be installed or running. On Linux, you can start Docker with:

systemctl start docker

To enable Docker to run automatically on boot, use:

systemctl enable docker

Next, test Docker's functionality by running:

docker run hello-world

This command downloads and executes a test image. If successful, Docker is working as expected. Errors at this stage suggest installation issues that need to be resolved.

For Docker Compose, verify its version with:

docker compose version

(Note the space between "docker" and "compose." If your setup uses an older version of Docker, you might need to run:)

docker-compose --version

Important: Without persistent volumes, workflows may be lost when containers restart. Proper volume setup is essential to avoid data loss.

Basic N8N Container Deployment

For a quick test of N8N, you can deploy a basic container using a single command. This is ideal for exploring the platform, though it lacks persistence for long-term use.

Run the following command to start N8N:

docker run -it --<span class="hljs-built_in">rm</span> \
  --name n8n \
  -p 5678:5678 \
  n8nio/n8n

This creates a temporary instance of N8N, accessible at http://localhost:5678. However, the --rm flag ensures the container is removed when it stops, so any created workflows will be lost.

To retain workflows during development, include a volume mount:

docker run -it --<span class="hljs-built_in">rm</span> \
  --name n8n \
  -p 5678:5678 \
  -v ~/.n8n:/home/node/.n8n \
  n8nio/n8n

The -v ~/.n8n:/home/node/.n8n option maps a directory in your home folder to the container, enabling persistent storage for workflows. For a more robust setup, consider using Docker Compose.

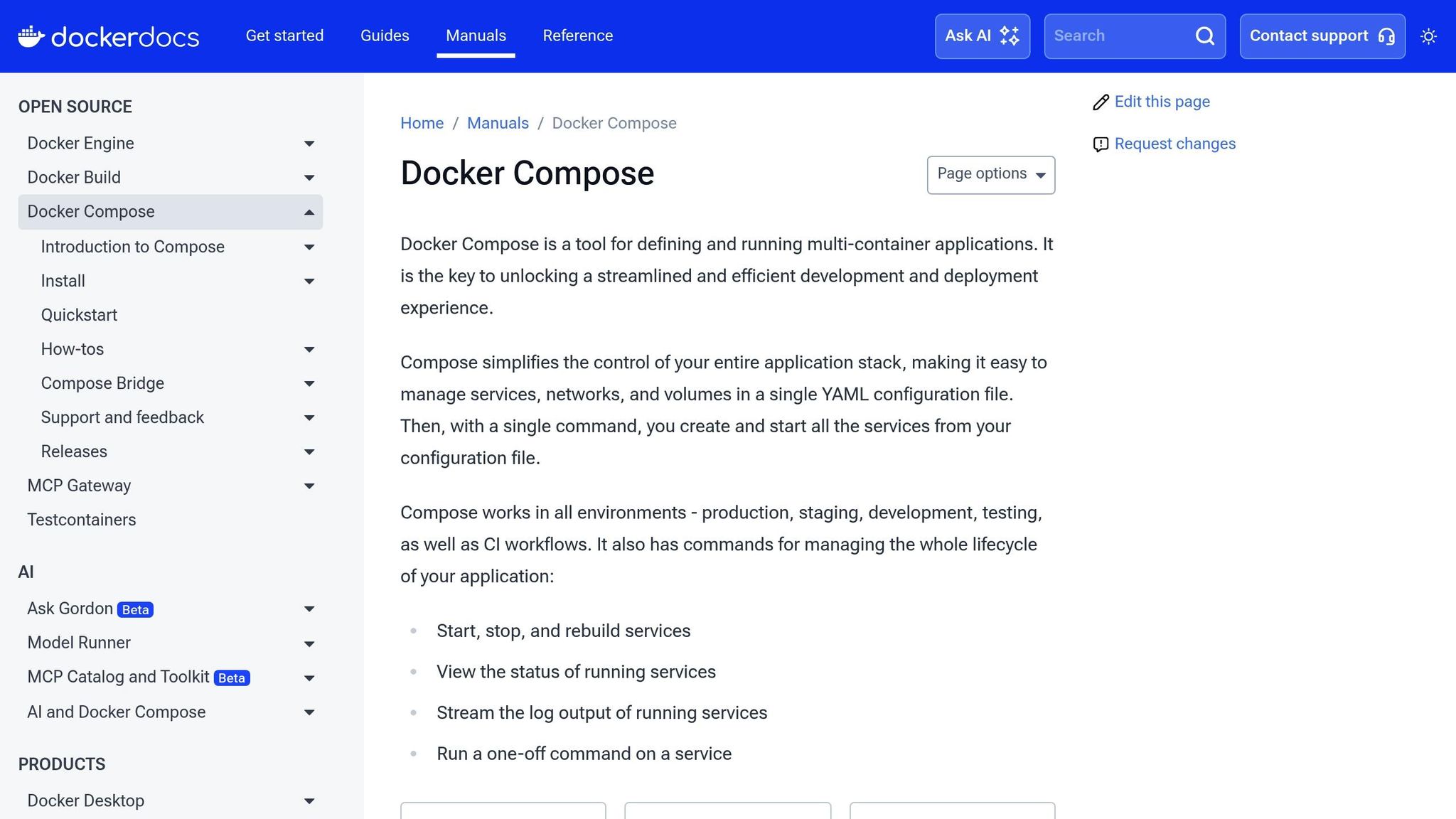

Docker Compose for Multi-Container Setup

Docker Compose allows for a more reliable deployment by separating services, such as the database and N8N itself. This setup is better suited for production environments.

Begin by creating a directory for the project:

<span class="hljs-built_in">mkdir</span> n8n-docker && <span class="hljs-built_in">cd</span> n8n-docker

Then, create a docker-compose.yml file with the following content:

<span class="hljs-attr">version:</span> <span class="hljs-string">'3.8'</span>

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">postgres:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">postgres:13</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">always</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">POSTGRES_USER:</span> <span class="hljs-string">n8n</span>
      <span class="hljs-attr">POSTGRES_PASSWORD:</span> <span class="hljs-string">n8n_password</span>
      <span class="hljs-attr">POSTGRES_DB:</span> <span class="hljs-string">n8n</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">postgres_data:/var/lib/postgresql/data</span>
    <span class="hljs-attr">healthcheck:</span>
      <span class="hljs-attr">test:</span> [<span class="hljs-string">'CMD-SHELL'</span>, <span class="hljs-string">'pg_isready -h localhost -U n8n'</span>]
      <span class="hljs-attr">interval:</span> <span class="hljs-string">5s</span>
      <span class="hljs-attr">timeout:</span> <span class="hljs-string">5s</span>
      <span class="hljs-attr">retries:</span> <span class="hljs-number">10</span>

  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">n8nio/n8n</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">always</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">DB_TYPE:</span> <span class="hljs-string">postgresdb</span>
      <span class="hljs-attr">DB_POSTGRESDB_HOST:</span> <span class="hljs-string">postgres</span>
      <span class="hljs-attr">DB_POSTGRESDB_PORT:</span> <span class="hljs-number">5432</span>
      <span class="hljs-attr">DB_POSTGRESDB_DATABASE:</span> <span class="hljs-string">n8n</span>
      <span class="hljs-attr">DB_POSTGRESDB_USER:</span> <span class="hljs-string">n8n</span>
      <span class="hljs-attr">DB_POSTGRESDB_PASSWORD:</span> <span class="hljs-string">n8n_password</span>
      <span class="hljs-attr">N8N_BASIC_AUTH_ACTIVE:</span> <span class="hljs-literal">true</span>
      <span class="hljs-attr">N8N_BASIC_AUTH_USER:</span> <span class="hljs-string">admin</span>
      <span class="hljs-attr">N8N_BASIC_AUTH_PASSWORD:</span> <span class="hljs-string">changeme123</span>
    <span class="hljs-attr">ports:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">"5678:5678"</span>
    <span class="hljs-attr">depends_on:</span>
      <span class="hljs-attr">postgres:</span>
        <span class="hljs-attr">condition:</span> <span class="hljs-string">service_healthy</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n_data:/home/node/.n8n</span>

<span class="hljs-attr">volumes:</span>
  <span class="hljs-attr">postgres_data:</span>
  <span class="hljs-attr">n8n_data:</span>

This configuration sets up two services: PostgreSQL for database storage and N8N for automation workflows. The depends_on clause ensures the database is ready before N8N starts, preventing startup errors.

Launch the setup with:

docker-compose up -d

The -d flag runs the containers in the background. To monitor their status, use:

docker-compose logs -f

Security Note: Exposing N8N on all interfaces (0.0.0.0:5678) can lead to unauthorized access. Use additional protections like firewalls or VPNs to secure your deployment.

Persistent Data Configuration

To ensure your workflows and data are not lost during container updates or restarts, Docker volumes are crucial. In the example above, postgres_data and n8n_data are used for PostgreSQL and N8N storage, respectively. These volumes persist independently of the container lifecycle.

You can list existing volumes with:

docker volume ls

Inspect specific volumes using:

docker volume inspect n8n-docker_n8n_data

For production environments, bind mounts can simplify backups. Update the docker-compose.yml file as follows:

<span class="hljs-attr">volumes:</span>
  <span class="hljs-bullet">-</span> <span class="hljs-string">/opt/n8n/data:/home/node/.n8n</span>
  <span class="hljs-bullet">-</span> <span class="hljs-string">/opt/n8n/postgres:/var/lib/postgresql/data</span>

Pre-create these directories with proper permissions:

<span class="hljs-built_in">sudo</span> <span class="hljs-built_in">mkdir</span> -p /opt/n8n/{data,postgres}
<span class="hljs-built_in">sudo</span> <span class="hljs-built_in">chown</span> -R 1000:1000 /opt/n8n/data
<span class="hljs-built_in">sudo</span> <span class="hljs-built_in">chown</span> -R 999:999 /opt/n8n/postgres

The user IDs 1000 and 999 correspond to the node and PostgreSQL users inside their respective containers. Incorrect permissions can lead to data loss or silent failures.

Tip: Without resource limits, complex workflows can cause containers to overconsume system memory, affecting overall performance.

Initial Access and Workflow Creation

Once your Docker setup is running, access N8N by visiting http://localhost:5678 in your browser. Enter the basic authentication credentials set in the docker-compose.yml file (e.g., username: admin, password: changeme123).

The web interface opens with a workflow editor where you can start building automations. For instance, test connectivity by adding an HTTP Request node or schedule tasks using a Cron node.

When configuring webhooks, use your server's external IP or domain name instead of localhost, as external services need to connect to your Docker host.

To confirm data persistence, create and save a workflow, then restart the containers with:

docker-compose restart

Your workflows should remain intact after the restart.

While Docker provides flexibility for N8N deployments, managing containers, updates, and scaling can be complex. For a streamlined alternative, platforms like Latenode offer similar automation features without the need for container management.

How to Self-Host n8n with Docker in 10 Minutes (Step by Step Guide)

Production-Ready Docker Configuration

Transitioning N8N from a development environment to a production setup involves key adjustments to ensure security, stability, and scalability. These adjustments focus on isolating resources, managing workloads effectively, and enabling updates without downtime.

Optimized Docker Compose Configuration

Deploying N8N in production requires a more robust setup than the basic configuration used for development. To handle concurrent workflows and provide redundancy for critical automations, it's essential to use external services and a well-structured Docker Compose file.

Here's an example of a production-ready docker-compose.prod.yml file, designed to separate services into dedicated containers:

<span class="hljs-attr">version:</span> <span class="hljs-string">'3.8'</span>

<span class="hljs-attr">networks:</span>
  <span class="hljs-attr">n8n-network:</span>
    <span class="hljs-attr">driver:</span> <span class="hljs-string">bridge</span>

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">postgres:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">postgres:15</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">unless-stopped</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">POSTGRES_USER:</span> <span class="hljs-string">n8n_prod</span>
      <span class="hljs-attr">POSTGRES_PASSWORD:</span> <span class="hljs-string">${POSTGRES_PASSWORD}</span>
      <span class="hljs-attr">POSTGRES_DB:</span> <span class="hljs-string">n8n_production</span>
      <span class="hljs-attr">POSTGRES_INITDB_ARGS:</span> <span class="hljs-string">"--encoding=UTF-8 --lc-collate=C --lc-ctype=C"</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">postgres_data:/var/lib/postgresql/data</span>
    <span class="hljs-attr">networks:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n-network</span>
    <span class="hljs-attr">deploy:</span>
      <span class="hljs-attr">resources:</span>
        <span class="hljs-attr">limits:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">2G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'1.0'</span>
        <span class="hljs-attr">reservations:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">1G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'0.5'</span>
    <span class="hljs-attr">healthcheck:</span>
      <span class="hljs-attr">test:</span> [<span class="hljs-string">'CMD-SHELL'</span>, <span class="hljs-string">'pg_isready -U n8n_prod -d n8n_production'</span>]
      <span class="hljs-attr">interval:</span> <span class="hljs-string">10s</span>
      <span class="hljs-attr">timeout:</span> <span class="hljs-string">5s</span>
      <span class="hljs-attr">retries:</span> <span class="hljs-number">5</span>

  <span class="hljs-attr">redis:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">redis:7-alpine</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">unless-stopped</span>
    <span class="hljs-attr">command:</span> <span class="hljs-string">redis-server</span> <span class="hljs-string">--requirepass</span> <span class="hljs-string">${REDIS_PASSWORD}</span>
    <span class="hljs-attr">networks:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n-network</span>
    <span class="hljs-attr">deploy:</span>
      <span class="hljs-attr">resources:</span>
        <span class="hljs-attr">limits:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">512M</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'0.5'</span>
    <span class="hljs-attr">healthcheck:</span>
      <span class="hljs-attr">test:</span> [<span class="hljs-string">'CMD'</span>, <span class="hljs-string">'redis-cli'</span>, <span class="hljs-string">'--raw'</span>, <span class="hljs-string">'incr'</span>, <span class="hljs-string">'ping'</span>]
      <span class="hljs-attr">interval:</span> <span class="hljs-string">10s</span>
      <span class="hljs-attr">timeout:</span> <span class="hljs-string">3s</span>
      <span class="hljs-attr">retries:</span> <span class="hljs-number">5</span>

  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">n8nio/n8n:1.15.1</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">unless-stopped</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">DB_TYPE:</span> <span class="hljs-string">postgresdb</span>
      <span class="hljs-attr">DB_POSTGRESDB_HOST:</span> <span class="hljs-string">postgres</span>
      <span class="hljs-attr">DB_POSTGRESDB_PORT:</span> <span class="hljs-number">5432</span>
      <span class="hljs-attr">DB_POSTGRESDB_DATABASE:</span> <span class="hljs-string">n8n_production</span>
      <span class="hljs-attr">DB_POSTGRESDB_USER:</span> <span class="hljs-string">n8n_prod</span>
      <span class="hljs-attr">DB_POSTGRESDB_PASSWORD:</span> <span class="hljs-string">${POSTGRES_PASSWORD}</span>
      <span class="hljs-attr">QUEUE_BULL_REDIS_HOST:</span> <span class="hljs-string">redis</span>
      <span class="hljs-attr">QUEUE_BULL_REDIS_PASSWORD:</span> <span class="hljs-string">${REDIS_PASSWORD}</span>
      <span class="hljs-attr">EXECUTIONS_MODE:</span> <span class="hljs-string">queue</span>
      <span class="hljs-attr">N8N_ENCRYPTION_KEY:</span> <span class="hljs-string">${N8N_ENCRYPTION_KEY}</span>
      <span class="hljs-attr">WEBHOOK_URL:</span> <span class="hljs-string">https://your-domain.com/</span>
      <span class="hljs-attr">N8N_PROTOCOL:</span> <span class="hljs-string">https</span>
      <span class="hljs-attr">N8N_HOST:</span> <span class="hljs-string">your-domain.com</span>
      <span class="hljs-attr">N8N_PORT:</span> <span class="hljs-number">5678</span>
      <span class="hljs-attr">NODE_ENV:</span> <span class="hljs-string">production</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n_data:/home/node/.n8n</span>
    <span class="hljs-attr">networks:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n-network</span>
    <span class="hljs-attr">depends_on:</span>
      <span class="hljs-attr">postgres:</span>
        <span class="hljs-attr">condition:</span> <span class="hljs-string">service_healthy</span>
      <span class="hljs-attr">redis:</span>
        <span class="hljs-attr">condition:</span> <span class="hljs-string">service_healthy</span>
    <span class="hljs-attr">deploy:</span>
      <span class="hljs-attr">resources:</span>
        <span class="hljs-attr">limits:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">4G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'2.0'</span>
        <span class="hljs-attr">reservations:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">2G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'1.0'</span>

  <span class="hljs-attr">nginx:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">nginx:alpine</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">unless-stopped</span>
    <span class="hljs-attr">ports:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">"80:80"</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">"443:443"</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">./nginx.conf:/etc/nginx/nginx.conf:ro</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">./ssl:/etc/nginx/ssl:ro</span>
    <span class="hljs-attr">networks:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n-network</span>
    <span class="hljs-attr">depends_on:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n</span>

<span class="hljs-attr">volumes:</span>
  <span class="hljs-attr">postgres_data:</span>
  <span class="hljs-attr">n8n_data:</span>

This configuration allocates 4GB of RAM and 2 CPU cores to the N8N container, ensuring it can handle complex workflows. Redis is included as a queue manager, enabling horizontal scaling with worker containers. The EXECUTIONS_MODE: queue environment variable allows workflows to be distributed across these workers, supporting thousands of concurrent tasks[4].

To manage sensitive information, create a .env file:

POSTGRES_PASSWORD=your_secure_postgres_password_here
REDIS_PASSWORD=your_secure_redis_password_here
N8N_ENCRYPTION_KEY=your_32_character_encryption_key_here

SSL/HTTPS Setup

Securing your N8N instance with HTTPS is crucial for protecting webhook data and user credentials. Nginx can act as a reverse proxy to handle SSL termination. Below is an example nginx.conf file:

<span class="hljs-section">events</span> {
    <span class="hljs-attribute">worker_connections</span> <span class="hljs-number">1024</span>;
}

<span class="hljs-section">http</span> {
    <span class="hljs-section">upstream</span> n8n {
        <span class="hljs-attribute">server</span> n8n:<span class="hljs-number">5678</span>;
    }

    <span class="hljs-section">server</span> {
        <span class="hljs-attribute">listen</span> <span class="hljs-number">80</span>;
        <span class="hljs-attribute">server_name</span> your-domain.com;
        <span class="hljs-attribute">return</span> <span class="hljs-number">301</span> https://<span class="hljs-variable">$server_name</span><span class="hljs-variable">$request_uri</span>;
    }

    <span class="hljs-section">server</span> {
        <span class="hljs-attribute">listen</span> <span class="hljs-number">443</span> ssl http2;
        <span class="hljs-attribute">server_name</span> your-domain.com;

        <span class="hljs-attribute">ssl_certificate</span> /etc/nginx/ssl/fullchain.pem;
        <span class="hljs-attribute">ssl_certificate_key</span> /etc/nginx/ssl/privkey.pem;
        <span class="hljs-attribute">ssl_protocols</span> TLSv1.<span class="hljs-number">2</span> TLSv1.<span class="hljs-number">3</span>;
        <span class="hljs-attribute">ssl_ciphers</span> ECDHE-RSA-AES256-GCM-SHA512:DHE-RSA-AES256-GCM-SHA512;
        <span class="hljs-attribute">ssl_prefer_server_ciphers</span> <span class="hljs-literal">off</span>;

        <span class="hljs-attribute">client_max_body_size</span> <span class="hljs-number">50M</span>;

        <span class="hljs-section">location</span> / {
            <span class="hljs-attribute">proxy_pass</span> http://n8n;
            <span class="hljs-attribute">proxy_set_header</span> Host <span class="hljs-variable">$host</span>;
            <span class="hljs-attribute">proxy_set_header</span> X-Real-IP <span class="hljs-variable">$remote_addr</span>;
            <span class="hljs-attribute">proxy_set_header</span> X-Forwarded-For <span class="hljs-variable">$proxy_add_x_forwarded_for</span>;
            <span class="hljs-attribute">proxy_set_header</span> X-Forwarded-Proto <span class="hljs-variable">$scheme</span>;
            <span class="hljs-attribute">proxy_http_version</span> <span class="hljs-number">1</span>.<span class="hljs-number">1</span>;
            <span class="hljs-attribute">proxy_set_header</span> Upgrade <span class="hljs-variable">$http_upgrade</span>;
            <span class="hljs-attribute">proxy_set_header</span> Connection <span class="hljs-string">"upgrade"</span>;
        }
    }
}

For automated SSL certificate management, consider using Certbot or replacing Nginx with Traefik, which offers built-in support for Let's Encrypt certificates. This ensures your automation data remains secure from unauthorized access.

Security and Resource Configuration

To prevent unauthorized access, the n8n-network Docker network isolates containers, allowing communication only within the defined network. Sensitive data in environment variables can be further secured with Docker secrets:

<span class="hljs-attr">secrets:</span>
  <span class="hljs-attr">postgres_password:</span>
    <span class="hljs-attr">file:</span> <span class="hljs-string">./secrets/postgres_password.txt</span>
  <span class="hljs-attr">redis_password:</span>
    <span class="hljs-attr">file:</span> <span class="hljs-string">./secrets/redis_password.txt</span>
  <span class="hljs-attr">n8n_encryption_key:</span>
    <span class="hljs-attr">file:</span> <span class="hljs-string">./secrets/n8n_encryption_key.txt</span>

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">postgres:</span>
    <span class="hljs-attr">secrets:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">postgres_password</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">POSTGRES_PASSWORD_FILE:</span> <span class="hljs-string">/run/secrets/postgres_password</span>

Additionally, setting memory and CPU limits ensures that no single container can exhaust system resources. For instance, N8N requires at least 2GB of RAM for moderate workflows, but scaling up to 4GB or more is advisable for complex tasks[2].

To prevent excessive log file sizes, configure Docker's logging driver:

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">logging:</span>
      <span class="hljs-attr">driver:</span> <span class="hljs-string">"json-file"</span>
      <span class="hljs-attr">options:</span>
        <span class="hljs-attr">max-size:</span> <span class="hljs-string">"10m"</span>
        <span class="hljs-attr">max-file:</span> <span class="hljs-string">"3"</span>

Monitoring and Logging

Maintaining a stable production environment requires continuous monitoring and structured logging. Tools like Prometheus and Grafana can help track container health, resource usage, and potential errors. Here's an example of adding Prometheus to your Docker Compose configuration:

  <span class="hljs-attr">prometheus:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">prom/prometheus:latest</span>
    <span class="hljs-attr">restart:</span> <span class="hljs-string">unless-stopped</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">./prometheus.yml:/etc/prometheus/prometheus.yml:ro</span>

sbb-itb-23997f1

Troubleshooting Common Docker Issues

This section focuses on resolving common challenges that arise during N8N deployments with Docker. If not configured correctly, Docker setups can lead to data loss, security risks, or performance bottlenecks. Below are detailed solutions to frequent problems and how to address them effectively.

Data Loss Prevention

Critical Issue: Misconfigured Docker volumes can erase all workflows during updates

One of the most common pitfalls in Docker deployments is failing to configure persistent storage for N8N. Without a properly mapped volume, workflows and settings are wiped out during container updates. To prevent this, ensure your Docker Compose file includes a persistent volume mapped to /home/node/.n8n:

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">image:</span> <span class="hljs-string">n8nio/n8n:latest</span>
    <span class="hljs-attr">volumes:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n_data:/home/node/.n8n</span>

<span class="hljs-attr">volumes:</span>
  <span class="hljs-attr">n8n_data:</span>

If you prefer bind mounts, ensure the permissions are correctly set:

<span class="hljs-attr">volumes:</span>
  <span class="hljs-bullet">-</span> <span class="hljs-string">/opt/n8n/data:/home/node/.n8n</span>

To safeguard your data further, create regular backups of the persistent volume. Use a script like the one below to automate backups with timestamps:

<span class="hljs-meta">#!/bin/bash</span>
docker run --<span class="hljs-built_in">rm</span> -v n8n_data:/source -v /backup:/backup alpine tar czf /backup/n8n-backup-$(<span class="hljs-built_in">date</span> +%Y%m%d).tar.gz -C /source .

This approach ensures that you can restore your workflows and settings to a previous state if anything goes wrong.

Security Configuration Issues

Problem: Docker network settings exposing N8N to unauthorized access

A common security risk arises when N8N is bound to all network interfaces, making it accessible to unauthorized users. To mitigate this, bind N8N to localhost by specifying the following in your Docker Compose file:

<span class="hljs-attr">ports:</span>
  <span class="hljs-bullet">-</span> <span class="hljs-string">"127.0.0.1:5678:5678"</span>

For production environments, enable basic authentication to protect access. Set the following environment variables:

<span class="hljs-attr">environment:</span>
  <span class="hljs-attr">N8N_BASIC_AUTH_ACTIVE:</span> <span class="hljs-string">"true"</span>
  <span class="hljs-attr">N8N_BASIC_AUTH_USER:</span> <span class="hljs-string">"admin"</span>
  <span class="hljs-attr">N8N_BASIC_AUTH_PASSWORD:</span> <span class="hljs-string">"your_secure_password_here"</span>

For enhanced security, avoid plain-text credentials by using Docker secrets:

<span class="hljs-attr">secrets:</span>
  <span class="hljs-attr">n8n_auth_password:</span>
    <span class="hljs-attr">file:</span> <span class="hljs-string">./secrets/n8n_password.txt</span>

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">secrets:</span>
      <span class="hljs-bullet">-</span> <span class="hljs-string">n8n_auth_password</span>
    <span class="hljs-attr">environment:</span>
      <span class="hljs-attr">N8N_BASIC_AUTH_PASSWORD_FILE:</span> <span class="hljs-string">/run/secrets/n8n_auth_password</span>

Additionally, place N8N behind a reverse proxy like Nginx to handle SSL termination. This setup not only secures your connection but also adds an extra layer of protection.

Performance and Memory Problems

Issue: Default memory limits causing crashes during complex workflows

By default, Docker often sets low memory limits (e.g., 512MB), which can lead to out-of-memory errors when running complex workflows. For production deployments, allocate at least 2GB of RAM, with 4GB being preferable. Adjust resource limits in your Docker Compose file like this:

<span class="hljs-attr">services:</span>
  <span class="hljs-attr">n8n:</span>
    <span class="hljs-attr">deploy:</span>
      <span class="hljs-attr">resources:</span>
        <span class="hljs-attr">limits:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">4G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'2.0'</span>
        <span class="hljs-attr">reservations:</span>
          <span class="hljs-attr">memory:</span> <span class="hljs-string">2G</span>
          <span class="hljs-attr">cpus:</span> <span class="hljs-string">'1.0'</span>

Monitor resource usage with the docker stats command to identify bottlenecks:

docker stats n8n-container-name

For workflows handling large datasets or requiring multiple concurrent executions, increase memory allocation incrementally. Assigning at least two CPU cores can also help prevent performance issues.

Debugging Container Issues

When troubleshooting container issues, logs and configuration details are your best friends. Use the following commands to diagnose problems:

• View logs to check for errors or unusual behavior:

  docker logs n8n-container --<span class="hljs-built_in">tail</span> 100 -f


• Inspect container configuration and networking:

  docker inspect n8n-container


• Verify network connectivity between containers:

  docker network <span class="hljs-built_in">ls</span>
  docker network inspect your-network-name
  docker <span class="hljs-built_in">exec</span> n8n-container ping postgres


If network connectivity fails, ensure all services are on the same network and can resolve each other's hostnames.

Common Error Solutions

Database Connectivity Failures

The error "Connection to database failed" is often due to incorrect environment variables or network misconfigurations. Double-check that the database settings in your Docker Compose file match exactly:

<span class="hljs-comment"># PostgreSQL service</span>
<span class="hljs-attr">POSTGRES_USER:</span> <span class="hljs-string">n8n_prod</span>
<span class="hljs-attr">POSTGRES_PASSWORD:</span> <span class="hljs-string">secure_password</span>
<span class="hljs-attr">POSTGRES_DB:</span> <span class="hljs-string">n8n_production</span>

<span class="hljs-comment"># N8N service  </span>
<span class="hljs-attr">DB_POSTGRESDB_USER:</span> <span class="hljs-string">n8n_prod</span>
<span class="hljs-attr">DB_POSTGRESDB_PASSWORD:</span> <span class="hljs-string">secure_password</span>
<span class="hljs-attr">DB_POSTGRESDB_DATABASE:</span> <span class="hljs-string">n8n_production</span>
<span class="hljs-attr">DB_POSTGRESDB_HOST:</span> <span class="hljs-string">postgres</span>  <span class="hljs-comment"># Must match service name</span>

Port Conflicts

If another service is already using port 5678, N8N won't start. Identify conflicts with these commands:

netstat -tulpn | grep 5678
lsof -i :5678

Resolve conflicts by changing the external port in your Docker Compose file:

<span class="hljs-attr">ports:</span>
  <span class="hljs-bullet">-</span> <span class="hljs-string">"5679:5678"</span>  <span class="hljs-comment"># External port 5679, internal port 5678</span>

Permission Errors

Permission issues on mounted volumes can result in "EACCES: permission denied" errors. Fix this by setting the correct ownership and permissions:

<span class="hljs-built_in">sudo</span> <span class="hljs-built_in">chown</span> -R 1000:1000 /path/to/n8n/data
<span class="hljs-built_in">sudo</span> <span class="hljs-built_in">chmod</span> -R 755 /path/to/n8n/data

SSL Certificate Errors

For development, self-signed certificates can cause webhook execution issues. Temporarily disable SSL verification:

<span class="hljs-attr">environment:</span>
  <span class="hljs-attr">NODE_TLS_REJECT_UNAUTHORIZED:</span> <span class="hljs-string">"0"</span>

In production, ensure your reverse proxy uses valid certificates and that the WEBHOOK_URL environment variable matches your domain.

Latenode Alternative: Managed Workflow Automation

While Docker simplifies the deployment of tools like N8N, managing containers can quickly become a burden for teams focused on building workflows rather than handling infrastructure. This is where managed platforms like Latenode shine, offering a streamlined alternative.

Why Choose Latenode

Deploying N8N with Docker often introduces operational challenges that can outweigh its benefits - especially for teams without prior Docker expertise or the necessary infrastructure. Latenode eliminates these hurdles, delivering a robust automation platform without the need for infrastructure management.

Unlike Docker-based setups, which demand knowledge of container orchestration, persistent storage, and security configurations, Latenode simplifies the process. There’s no need for server setup, volume management, or SSL certificate configuration. Everything from updates and backups to security patches is handled automatically, reducing risks like downtime or data loss caused by misconfigurations.

Even the official N8N documentation advises caution, recommending self-hosting only for users with advanced technical expertise. It warns that errors in Docker or server configurations can lead to severe issues, including data loss and security vulnerabilities [3]. Latenode addresses these concerns by abstracting infrastructure management entirely. It provides secure, isolated environments with guaranteed data persistence and automated backups.

Additionally, Latenode includes enterprise-level security features such as managed SSL, network isolation, and regular vulnerability patching. Setting up these features manually in a Docker environment requires significant expertise and effort, which Latenode users don’t have to worry about.

These benefits set the foundation for a closer comparison between managed platforms and self-hosted Docker deployments.

Latenode vs. N8N Docker Deployment

The differences between a managed platform like Latenode and a self-hosted Docker deployment become apparent when evaluating setup time, maintenance, and operational complexity.

Aspect	Latenode (Managed)	N8N Docker (Self-Hosted)
Setup Time	Minutes (sign-up only)	1-2 hours for basic, 4-6 hours for production-ready setups
Maintenance	Provider-managed	Ongoing updates, backups, and security handled by the user
Scaling	Automatic, provider-managed	Manual scaling requiring Docker and infrastructure expertise
Security	Auto-patched, provider-managed	User-managed, with risks of misconfiguration
Data Backups	Automated with retention policies	Manual setup and monitoring required
Resource Management	Dynamically allocated based on demand	Manual tuning and monitoring of CPU and memory

Latenode is operational in just minutes, requiring no technical setup. In contrast, even a basic N8N Docker deployment can take 1-2 hours, with production-ready setups - such as those requiring SSL, database integration, and monitoring - often taking 4-6 hours or more. Maintenance is another challenge for Docker users, who must handle updates, backups, and security monitoring themselves.

Hidden costs in Docker deployments can include server hosting fees, time spent on maintenance, and potential expenses from downtime or data recovery. Latenode's subscription model consolidates these costs into a predictable monthly fee, which can often be more economical for teams without dedicated DevOps resources.

As workflows grow in complexity, Latenode’s automatic scaling and resource allocation ensure smooth operation without requiring manual adjustments. This contrasts with Docker setups, where scaling often involves continuous monitoring and manual interventions, such as migrating to larger servers or tweaking resource limits.

Beyond operational simplicity, Latenode offers predictable costs and a seamless path to scalability.

Best Use Cases for Latenode

Latenode is an excellent choice for teams lacking Docker or DevOps expertise but still needing reliable workflow automation without the burden of managing infrastructure. It’s particularly beneficial for organizations that prioritize rapid deployment and minimal downtime, especially when compliance, security, and backup needs are critical but internal technical resources are limited.

Marketing agencies, small businesses, and development teams focused on application logic rather than system administration find immense value in managed platforms. For example, a mid-sized marketing agency initially using N8N via Docker faced frequent downtime due to container misconfigurations and lost data during updates. After switching to Latenode, the agency reported a 50% reduction in workflow deployment time and eliminated infrastructure-related incidents, allowing them to focus entirely on client projects.

Teams aiming for quick iteration cycles also benefit from Latenode’s zero-setup environment. New automation ideas can be tested and deployed immediately, without needing to provision servers or configure networking. Features like a built-in database, headless browser automation, and AI model integration further simplify complex workflows, removing the need to manage multiple Docker containers.

Organizations with strict compliance requirements often prefer managed platforms because they handle security patches, backups, and audit logging automatically, ensuring adherence to regulatory standards.

The trade-off? Reduced control over the underlying infrastructure and fewer customization options. Advanced users requiring custom plugins, specific configurations, or on-premises deployment may still lean toward N8N Docker setups despite the added complexity. However, for most automation use cases, Latenode’s managed platform offers greater reliability and faster results compared to self-hosted alternatives.

Conclusion

Setting up N8N with Docker involves navigating technical requirements and managing the intricacies of containerized environments.

Key Takeaways

Deploying N8N with Docker for production use demands careful planning and attention to detail. One frequent error is neglecting persistent storage configuration. To avoid data loss during updates, ensure Docker volumes are correctly mapped to the host system.

Security is another critical factor. Use environment variables to establish strong authentication credentials (e.g., N8N_BASIC_AUTH_ACTIVE, N8N_BASIC_AUTH_USER, N8N_BASIC_AUTH_PASSWORD) and implement firewall rules to restrict unauthorized access [1]. While Docker is recommended for self-hosting, the N8N documentation emphasizes that self-hosting is best suited for advanced users due to potential risks from misconfigurations [3].

Resource allocation also plays a pivotal role in ensuring smooth operations. At a minimum, allocate 2GB of RAM (4GB is better) and a dual-core CPU for basic workflows. For more complex tasks, higher specifications may be necessary. Keep an eye on performance metrics and adjust memory limits as needed to prevent crashes [2].

Updating N8N requires a cautious approach. With minor updates frequently released, version pinning and a well-thought-out update strategy are essential to maintain stability [3]. Always back up your data volumes before updates and test changes in a staging environment to avoid unexpected disruptions.

These considerations form the foundation for a stable and secure Docker deployment.

Next Steps

If you have the expertise to manage Docker, focus on securing your deployment, scheduling regular backups, and documenting update processes. For those who prefer a simpler approach, consider a managed solution.

For teams looking to bypass the complexities of Docker, Latenode offers a zero-infrastructure platform that delivers enterprise-grade workflow automation without the need for container management. With Latenode, you gain the flexibility of N8N-level capabilities, automatic scaling, and a maintenance-free experience.

FAQs

What are the main advantages of using Docker to deploy N8N in production?

Using Docker to deploy N8N in a production environment brings several clear benefits:

• Consistent performance: Docker ensures that your workflows operate reliably across different systems by maintaining a uniform setup, no matter the underlying environment.
• Streamlined updates and maintenance: By keeping the N8N application separate from the host system's dependencies, Docker minimizes conflicts and simplifies the process of managing updates.
• Improved security: The containerization approach isolates the application and its data, offering an added layer of protection and reducing potential vulnerabilities.
• Scalability made simple: Docker integrates with orchestration tools, enabling you to scale and manage even complex workflows with ease.

These advantages position Docker as a strong option for running N8N in production, particularly for teams prioritizing dependable performance, secure operations, and the ability to grow their automation capabilities efficiently.

How can I prevent data loss when updating N8N Docker containers?

To avoid losing data when updating an N8N container, setting up Docker volumes is crucial. These volumes allow your workflows and settings to remain intact, even if the container is stopped or replaced. Be cautious not to delete these volumes when removing a container, as doing so could result in permanent data loss.

Before proceeding with updates, make sure to back up your data and verify that the volumes are properly linked to the new container. For production environments, it’s wise to use an external database like PostgreSQL instead of relying solely on Docker volumes. This extra layer of protection helps safeguard your data during updates or container transitions.

When you're ready to update, follow these steps: stop the running container, pull the latest Docker image, and restart the container using the same volume mounts. This ensures your workflows and configurations remain intact without any disruption.

What are the best practices for securing N8N when using Docker?

To keep your N8N instance secure in a Docker environment, it's important to follow a few key practices:

• Set up a reverse proxy with SSL/TLS encryption to secure communication and protect data in transit.
• Limit access by configuring a firewall to allow connections only from trusted IP addresses.
• Enable authentication methods such as two-factor authentication (2FA), LDAP, or OIDC to block unauthorized users.
• Run containers with the least privileges necessary to minimize security risks.
• Regularly update Docker images and the N8N container to address any known vulnerabilities.

You can further enhance security by using tools like Fail2ban to guard against brute-force attacks and ensuring your server's operating system is consistently updated. These measures help protect your workflows and data when running N8N in a Dockerized setup.

Related Blog Posts

• Installing and Configuring Puppeteer: Solving Common Dependency and Chromium Issues
• NPM for AI Workflow Automation: Key Use Cases
• N8N Self-Hosted Pricing Reality 2025: True Costs Beyond 'Free' + Infrastructure Analysis
• How to Self-Host N8N: Complete Setup Guide + Production Deployment Checklist 2025
